2.4.2 Floating anchors and high lines
Where an anchor point is not attached directly to a structure , but is instead supported by secondary anchor ropes , it is described by arborists as a floating anchor . Floating anchors can be as simple as a secondary rope
attached midline to an existing climbing line , or as complex as tensioned three-dimensional highline systems that can be trolleyed in multiple directions under load .
Simple floating anchors

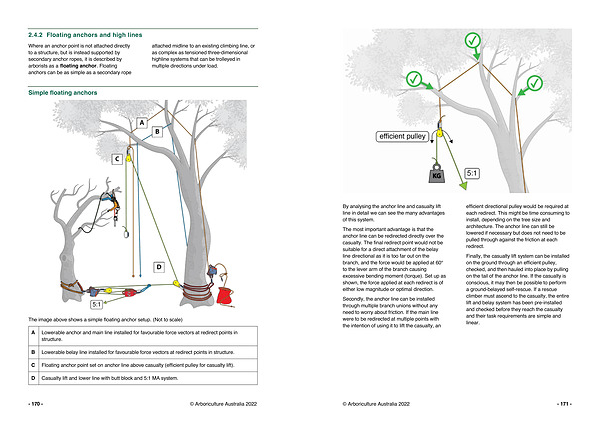

The image above shows a simple floating anchor setup . ( Not to scale )
A
Lowerable anchor and main line installed for favourable force vectors at redirect points in structure .
B Lowerable belay line installed for favourable force vectors at redirect points in structure .
C Floating anchor point set on anchor line above casualty ( efficient pulley for casualty lift ).
D Casualty lift and lower line with butt block and 5:1 MA system .
